Solutions - Function
Fluoropolymer has a small friction coefficient, and good low friction properties.
Fluoropolymer has the smallest friction coefficient in all solid materials.
* ex. The dynamic friction coefficient of PTFE (polytetrafluoroethylene) is 0.1.
This great property are widely applied to the parts and equipment which can be used for powder sliders and sliding parts where lubricant is not used.
| Grade | NF-001 | NF-007 | NF-1970 | |
|---|---|---|---|---|
| Film thickness/µm | Standard (approx. 30µm) | Standard (approx. 30µm) | Standard (approx. 100µm) | |
| Resin | PTFE | Composite resin | Composite resin | |
| Color / Tone | Green | Metallic black | Brown | |
| Pencil hardness* | B | HB - B | HB - B | |
|
Taber abrasion* (CS-17, 1 kg, 10000 rotations) |
Approx. 75mg | Approx. 122mg | Approx. 65mg | |
| Surface roughness* | Average Ra | 1.2 | 1.1 | 0.9 |
| Maximum Ry | 6.2 | 6.3 | 4.8 | |
|
Dynamic friction coefficient µk* (Load 1kg) |
PP sheet | 0.12〜0.13 | 0.19〜0.20 | 0.15〜0.20 |
| Characteristics | Low friction | Low friction/Non-stickness | Low friction/Wear resistance | |
SCROLL
*These are the results from tests, and are not guaranteed to perform under composite conditions.

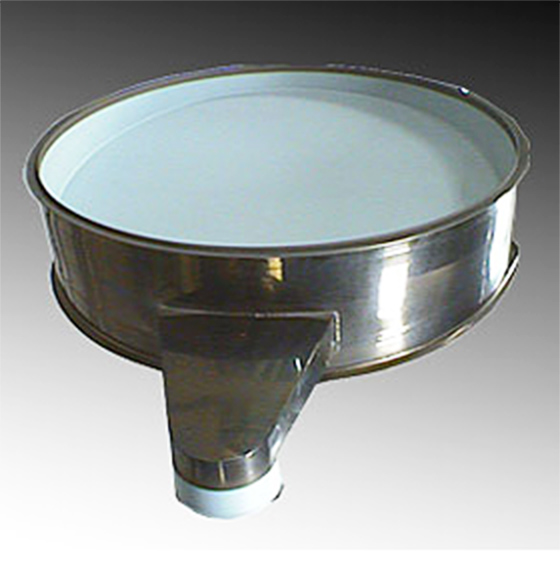

Fluoropolymer coating provides the solution
- Prevent temporary stoppage due to blockage by powder bridges, etc
- Prevent noise from knockers and damage to devices, and improve powder transport efficiency
